OpenR66-Configuration



Please note: All new versions will be located at GitHub under Waarp new project name :

http://waarp.github.com/Waarp/

The project still remains Open Source under GPL V3.

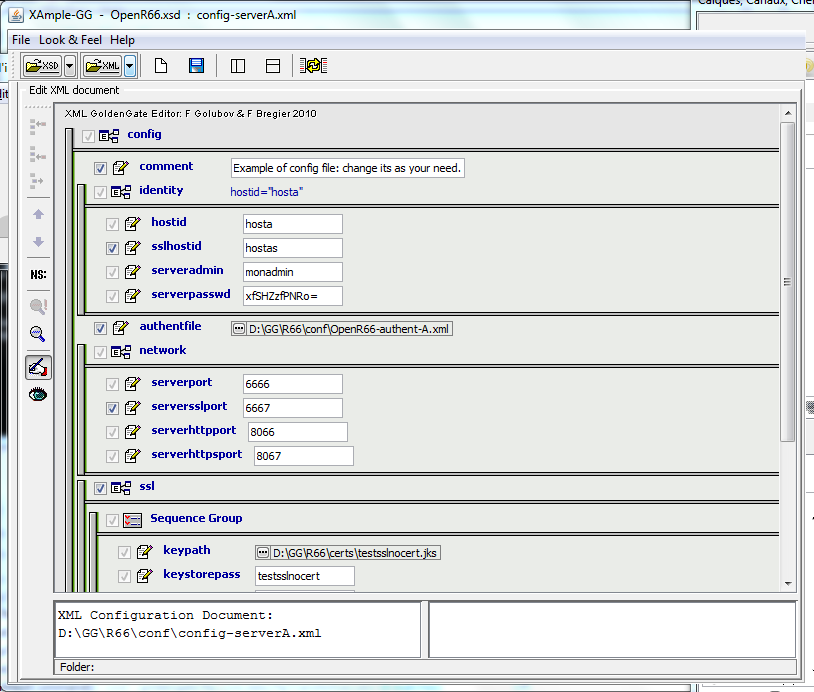

To configure an OpenR66 Server, you need to first create the XML files as needed (see the Xml Config files page): main config file, authent file, rules and limit config files. To help the administrator to generate correct files, XSD models are defined to be used with an extension of the project Xample (XML Gui Editor) from Felix Golubov.



xample-config

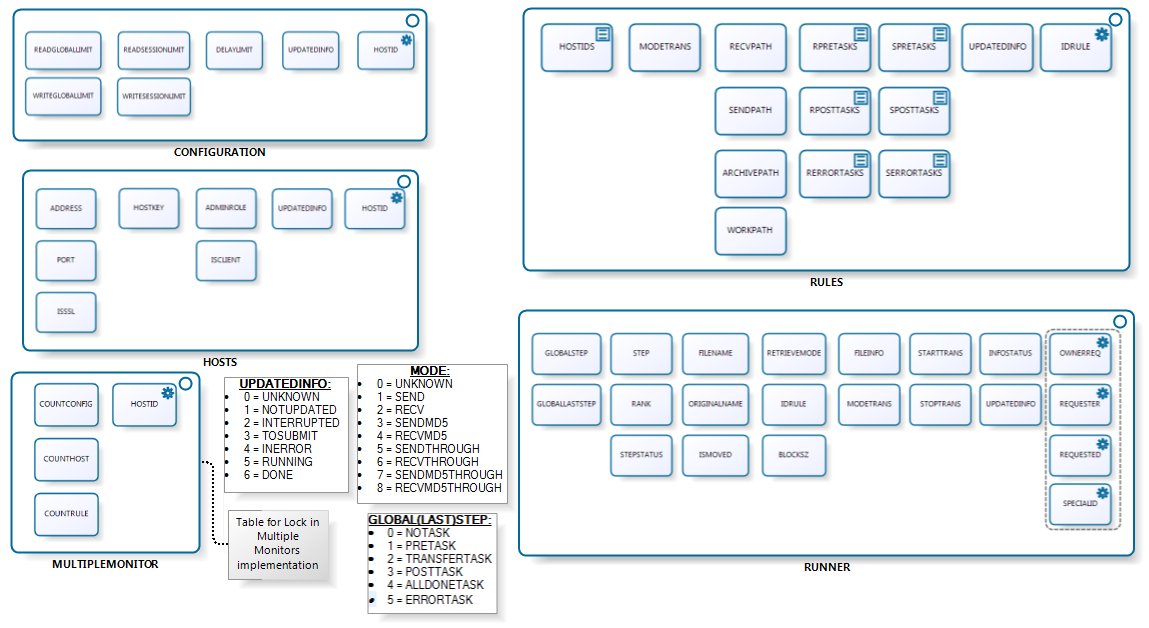

Then, you create a database entry in the model you choose (currently supported is Oracle, PostGreSQL, MySQL and H2 Database). This database entry should be referenced in the XML config files. Below is presented the schema of the database that will be created.

openr66-database



You need to get all the necessary jar (see the depencies of the project) to allow you to launch the server. An example of shell script including all jar is presented in the src/main/example directory.



Then you launch the ServerInitDatabase.



Note that multiple OpenR66 Servers may shared the exactly same database. OpenR66 is compatible with such a model. Note however that Rules are strictly shared, which means that you will need to take care of the absolute path of EXEC commands such that they are valid on all OpenR66 servers where it should be executed.



Cryptography

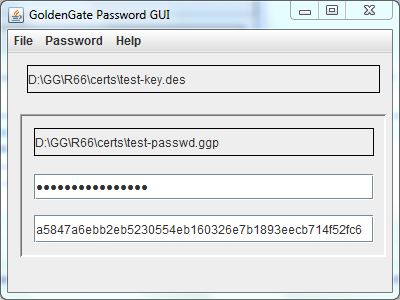

For the administrator you need a KeyStore containing a RSA key for SSL support in HTTPS and a specific DES Key for the crypted password support. DES crypted support and generation are available through the GoldenGate Password GUI project.



pwdgui2



You need another KeyStore for the SSL support in the OpenR66 protocol, but only if you want to use this SSL channel.

If you don't want that OpenR66 uses SSL between two hosts, then you only need one KeyStore for the HTTPS support.



In the source, you will find in the certs directory 2 such keystore named admin66.store and openr66.store. You can named the files as you wanted (using the standard "jks" extension for instance).

To generate those files, you can also ue the keytool command from the jdk, or using the cool free tool KeyTool IUI (last known version in 2.4.1).

  • keypath for OpenR66 channels (admkeypath for administrator) is the full or relative path to the keystore file
  • keystorepass (admkeystorepass) is the password for the keystore
  • keypass (admkeypass) is the password for the key

For instance: keytool -genkey -alias myalias -keyalg RSA -validity xxx -keystore mystore.store



Below you will find the full detail on how to create those KeyStore and TrustedKeyStore according to your needs:



To generate the stores for OpenR66 for instance, you need to create 2 JKS keyStore. To generate those files, you can use the "keytool" command from the JDK or using the free tool KeyTool IUI (last known version in 2.4.1). Below we show how to use the Keytool IUI.

  • For SSL connection without authentication of clients
    • Server side (also valid for Administration HTTPS site)
      • Create one jks KeyStore (server.jks) with one Private Key Version 3 using RSA algorithm.
      • Use this KeyStore as KeyStore for the Server.
      • To do that, suing KeyTool IUI:
        1. Create an empty KeyStore
        2. Create a Private Key Version 3 with RSA algorithm added to this KeyStore
    • Client side
      • Create one jks TrustStore (clientTrust.jks) with the Certificate Chain of the Server Key from the Server as a Regular Certificate.
      • Use this KeyStore as Trustore for the Client.
      • To do that, using KeyTool IUI:
        1. From the Server Keytore, export Private Key (2 files with one Certificate Chain)
        2. Create one jks TrustStore (Empty KeyStore)
        3. Import the Trusted Certificate as Regular Certificate (Certificate Chain as .der file)
  • For SSL connection with authentication of clients
    • First do as without authentication of clients for the server authentication side: server.jks for the Server's KeyStore and clientTrust.jks for the Client's TrustStore.
    • Handle the reverse authentication of multiples clients within the server
      • Client side
        • Create one jks KeyStore with one Private Key Version 3 using RSA algorithm for each Client (client1.jks, client2.jks, clientn.jks).
        • Use this KeyStore as KeyStore for the Client.
        • To do that, suing KeyTool IUI:
          1. Create an empty KeyStore
          2. Create a Private Key Version 3 with RSA algorithm added to this KeyStore
      • Server side
        • Create one jks TrustStore (serverTrust.jks) with the Certificate Chain of the Client Key from the Client as a Regular Certificate.
        • Use this KeyStore as Trustore for the Server.
        • To do that, using KeyTool IUI:
          1. Create one jks TrustStore (Empty KeyStore)
          2. From the Client Keytore, export Private Key (2 files with one Certificate Chain)
          3. Import the Trusted Certificate as Regular Certificate (Certificate Chain as .der file)
          4. Import all Trusted Certificates as with 2 and 3 in the same TrustStore



Then you have to fill the ports to use (serverssl port for OpenR66 channels, serverhttpsport for the administrator) and to set up the good path to every components (don't forget the path to the html admin files).



Now you can launch the OpenR66 Server.
