Package goldengate.ftp.core.data.handler

Classes implementing Data connections

The internal logic is the following:
When a connection is opened for data network: It first tries to find the corresponding session setup from the control connection.

See:
Description

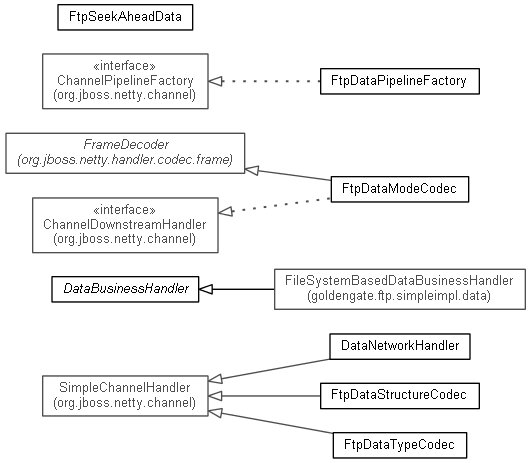

Class Summary

DataBusinessHandler	This class is to be implemented in order to allow Business actions according to FTP service
DataNetworkHandler	Network handler for Data connections
FtpDataModeCodec	First CODEC : - encode : takes a DataBlock and transforms it to a ChannelBuffer - decode : takes a ChannelBuffer and transforms it to a DataBlock STREAM and BLOCK mode are implemented.
FtpDataPipelineFactory	Pipeline Factory for Data Network.
FtpDataStructureCodec	Third CODEC : - encode/decode : takes DataBlock and transforms it to a DataBlock FILE and RECORD are implemented (DataNetworkHandler will do the real job).
FtpDataTypeCodec	Second CODEC : - encode/decode : takes a DataBlock and trsnforms it to a new DataBlock according to the types Force ASCII, EBCDIC or IMAGE (with NON PRINT).
FtpSeekAheadData	SeekAheadData Class used to optimize access to the incoming buffer

Package goldengate.ftp.core.data.handler Description

Classes implementing Data connections

The internal logic is the following:

• When a connection is opened for data network:
It first tries to find the corresponding session setup from the control connection. Then it setups the FTP codec. Finally it informs the FtpTransferControl object that the data connection is opened and ready, such that the transfer can start correctly.
• Each time a block is received:
the DataBlock is written into the corresponding FtpFile according to the status.
• If the operation is a retrieve
it writes the file to the data channel (from FtpTransferControl) and wake up the process of writing from channelInterestChanged in order to prevent OOME.
• When an exception occurs
the data connection will be closed so as the current transfer action through the FtpTransferControl Object.
• When the connection is closed
the process tries to unbind if necessary the parent connection (no more connections will use this binded address) and then cleans all attributes.
